Finding semantic patterns in omics data using concept rule learning with an ontologybased refinement operator
BioData Mining volume 13, Article number: 13 (2020)
Abstract
Background
Identification of nontrivial and meaningful patterns in omics data is one of the most important biological tasks. The patterns help to better understand biological systems and interpret experimental outcomes. A wellestablished method serving to explain such biological data is Gene Set Enrichment Analysis. However, this type of analysis is restricted to a specific type of evaluation. Abstracting from details, the analyst provides a sorted list of genes and ontological annotations of the individual genes; the method outputs a subset of ontological terms enriched in the gene list. Here, in contrary to enrichment analysis, we introduce a new tool/framework that allows for the induction of more complex patterns of 2dimensional binary omics data. This extension allows to discover and describe semantically coherent biclusters.
Results
We present a new rapid method called sem1R that reveals interpretable hidden rules in omics data. These rules capture semantic differences between two classes: a target class as a collection of positive examples and a nontarget class containing negative examples. The method is inspired by the CN2 rule learner and introduces a new refinement operator that exploits prior knowledge in the form of ontologies. In our work this knowledge serves to create accurate and interpretable rules. The novel refinement operator uses two reduction procedures: Redundant Generalization and Redundant Nonpotential, both of which help to dramatically prune the rule space and consequently, speedup the entire process of rule induction in comparison with the traditional refinement operator as is presented in CN2.
Conclusions
Efficiency and effectivity of the novel refinement operator were tested on three real different gene expression datasets. Concretely, the Dresden Ovary Dataset, DISC, and m2816 were employed. The experiments show that the ontologybased refinement operator speedsup the pattern induction drastically. The algorithm is written in C++ and is published as an R package available at http://github.com/fmalinka/sem1r.
Background
Nowadays, omics data analysis that integrates semantics in the form of external prior knowledge with raw measurements is becoming more and more popular in computational biology [1–3]. A typical example of integrative gene expression data analysis may deliver a direct link between a phenotype and existing annotation terms at different levels of generality. The integration helps scientists to interpret gene expression data easier because it can reveal gene sets that share common biological properties. Semantic data are stored in databases, oftentimes in an ontology format. In this area, an important role is played by The Open Biological and Biomedical Ontology (OBO) Foundry [4], which provides validation and assessment of ontologies to ensure their interoperability. Dozens of ontologies from various biological domains can be downloaded from http://www.obofoundry.org/.
Gene set enrichment analysis
One of the most popular methods that uses this type of semantics utilizing a connection between ontologies or gene set databases and genes is enrichment analysis, Gene Set Enrichment Analysis (GSEA) [5] represents one of its most frequently used implementations. The enrichment analysis identifies a list of significantly enriched ontological terms from a provided list of differentially expressed genes that is sorted according by some ranking metric (pvalue, log fold change, etc.). To discover a certain molecular function or biological process that is shared over the set of differentially expressed genes, Gene Ontology [6, 7] is an appropriate and often used annotation database. GSEA overcomes certain limitations of the statistical enrichment assessment based on hypergeometric, χ^{2}, or Fisher exact test, namely the information loss caused by selection of significant genes before the enrichment analysis. An example of GSEA outcome that is induced from data over the KEGG database can be the following:
In our view, this GSEA outcome corresponds to a hypothesis that can be seen as a collection of three simple rules where each rule has length one and says, independent of the other rules, that the corresponding term in the rule is significantly enriched in the reported set of genes against a background/control gene set. Unfortunately, GSEA in particular, and enrichment analysis in general, cannot produce more complex hypotheses. For example, the hypothesis above does not say that KEGG_WNT_SIGNALING_PATHWAY and KEGG_CELL_CYCLE are enriched simultaneously, in conjunction. The form of hypothesis only says that these terms are enriched individually. On the other hand, let R be the following rule:
R says that simultaneous occurrence of the terms KEGG_WNT_SIGNALING_PATHWAY and KEGG_CELL_CYCLE in the annotation of a gene (frequently) leads to its upregulation. The upregulation score for the rule R is computed from a gene set where each gene has to be associated with both terms simultaneously. In our framework, and unlike the traditional enrichment analysis, we will be able to cope with these conjunctive rules.
Moreover, the dimension of biological samples/conditions is disregarded in the enrichment analysis, only the dimension of genes is taken into consideration when constructing annotations. The enrichment analysis supposes a gene set of interest (e.g. genes that are differentially expressed) to be a part of the input. Consequently, these methods can only be applied in such biological experiments, where samples are split into two groups, treatments and controls. However, the treatment and control labels are often not available. In most cases, the split into groups is unclear, the sample groups may overlap or form complex taxonomies. Under these conditions, any set of differentially expressed genes cannot easily be determined. For this reason, we suppose that samples are described with a rich ontology of annotation terms (locations, conditions, complex treatments, etc.) and bring an opportunity to further generalize the rules with extra terms from this ontology that can be added into the rules. This allows for inducing a rule that selfdefines the semantically coherent joint groups of genes and samples; the genes tend to be upregulated in the sample group. The induction is fully automated and driven by the context provided in the measurements and annotation ontologies. In other words, GSEA uses a 1dimensional space of genes to induce a list of significantly enriched annotation terms. In this work, we expand onto 2dimensional expression space and consequently allow for generation of hypotheses that represent a set of genes upregulated in a specific set of samples/biological conditions. An example of the hypothesis could be the following rule:
This hypothetical example shows the case where genes belonging to KEGG_WNT_SIGNALING and KEGG_CELL_CYCLE pathways are frequently upregulated in samples from WING_VEIN_SEGMENT, which makes a specific body part of Drosophila melanogaster.
Rule learning with ontological background knowledge
We use rule learning [8, 9] to construct the aboveoutlined hypotheses. Rule learning refers to a class of supervised machine learning methods that induce a set of classification rules from a given set of training examples. For a binary task, training examples are assigned to two disjoint sets of positive and negative examples. The rule is an ifthen statement where the antecedent is in the form of a conjunction of positive or negative logical terms, and the consequent is a class label. The final decision regarding an unseen example is provided by a set of rules or their ordered list. The rules are widely used in the fields of medicine and biology for their easy and clear interpretation [10–12] contrary to neural networks, for instance.
As previously mentioned, one of the things that can help scientists interpret their data in a more natural way is background knowledge. Bioinformatics frequently deals with Gene Ontology [6, 7] and there are other types of structured databases, such as KEGG [13–15], which can also be interpreted as an ontology or a taxonomy. Medicine employs Disease Ontology [16, 17] or SNOMEDCT, natural language processing makes use of WordNet [18] or YAGO [19], dedicated ontologies are often encountered in industry too.
In our work, these two concepts, rule learning and ontologies or taxonomies, are combined. We observed that the ontologies reasonably increase accuracy and robustness of induced rules. However, they also reasonably raise the number of logical terms available for rule construction, which consequently leads to prohibitive growth of hypothesis space and inefficiency of rule learning. This inefficiency can reasonably be reduced with consistent utilization of the known hierarchical relationships between the ontology terms that cannot be handled with the traditional rule learning methods [20, 21]. In this paper, we will focus on the binary task (positive and negative examples, two classes only) and multiple rule models (the output of the learning algorithm is multiple rules).
The main motivation for this paper was our work published in [22], in which we introduced a technique called semantic biclustering. This type of biclustering infers a human easily readable form of hypothesis describing only a single target class (also known as the target concept). This technique is applied to a gene expression data where highly expressed genes in corresponding samples are considered as the target class. One of the proposed methods solves the problem of semantic biclustering by linearizing a twodimensional binary data matrix and a set of ontologies to an attributevalue representation that can be figured out using one of the wellknown rule learning algorithms such as CN2 [20, 23], RIPPER [21], or PRIM [24]. However, current ontologies, such as Gene Ontology, contain tens of thousands of hierarchically ordered terms. As a result, building a classification model without a preprocessing step is time and memory consuming. For this reason, we introduce a new refinement operator for a rule learning algorithm that examines properties between given data, ontologies, and its mutual relations to speedup and improve the process of learning.
One of the related subfields of machine learning that can exploit formalized prior knowledge such as ontologies or taxonomies is Inductive Logic Programming (ILP) [25] where a key challenge is to prune the search space of (firstorder logic) rules. For its ability to work with this form of prior knowledge, we were inspired by this subfield. In [26], the authors proposed a refinement operator to construct conjunctive relational features. This algorithm uses taxonomies to exclude conjunction from the exploration process if the conjunction contains a feature together with any of its subsumees. In [27], the authors find and prune such hypotheses that are equivalent to a previously considered hypothesis. To test such equivalency in given domain theory, they proposed a saturation method for a firstorder logic clause with the property that two clauses are equivalent whenever their saturations are isomorphic.
However, the highly expressive firstorder logic setting of ILP is traded off by high computational demands and high complexity of resulting patterns. The latter presents a challenge when interpreting and validating the outputs. For the analysis task addressed here, the expressiveness and complexity of ILP is unnecessary. We thus seek to design an efficient rulerefinement operator in the simpler setting of IFTHEN rules corresponding to propositionallogic formulas.
Propositional rule learning
We base our approach on the classical rule learning algorithm CN2 [20]. The input to CN2 is an attributevalue description of a set of examples along with the class labels of the examples, i.e. the training set. The output is a set of rules predicting class labels from the attribute values. Each rule has the form
where a_{i} denote attributes as defined in the example set, v_{i} are values assumed for the prediciton, and class is the predicted class. For each class, the algorithm first considers an empty set of conditions on the lefthand side. Such a rule will trivially predict class for all examples, which will typically be incorrect. The set of conditions thus needs to be iteratively extended until the rule has sufficient quality, i.e., it avoids enough outofclass examples while retaining the class prediction for sufficiently many inclass examples. The addition of a condition into a rule is called rule refinement. An applied refinement may turn out unsuitable even with additional refinements, a highquality rule is not found. Thus the algorithm can backtrack and search an alternative refinement. The exact succession of these operations is prescribed by the Beam search heuristic [28]. When a rule is accepted and the training set still contains class examples not predicted by it, a new rule is searched. The loop terminates when each positive example is predicted positive by at least one of the accepted rules.
Methods
We aim to learn rules similar in form to (1), except each condition on the lefthand side will correspond to an assumed ontological term. Thus the logical conjunction will simply correspond to a set of terms. Rules will be searched only for the positive class, as any example not classified as positive is deemed negative by default (we work in the binary classification setting). Thus the class symbol in all rules will indicate the positive class, and we can drop the righthand side of rules. Therefore, a rule in our context is simply a set of terms.
Our goal is to find a set of rules which fit well a supplied training set as described above in the context of the CN2 algorithm. To this end, we introduce a special refinement operator that, due to the taxonomic nature of the assumed conditions, significantly reduces the search space of rules and consequently reduces run times of the rule learner in comparison to the traditional refinement operator without a loss of accuracy. For example, if term t1 is in the rule and the ontology prescribes that t2 is more general than t1 then adding t2 to the rule is obviously useless. We can thus safely prune from the search space all rules combining t1 and t2.
Technically, the proposed ontologybased refinement operator uses two reduction procedures: a Redundant Generalization that omits candidate rules based on a relation generalizationspecialization and a Redundant Nonpotential that omits the candidate rules which cannot improve classification accuracy.
Problem formalization
To describe our rulelearning algorithm in detail, we first define a few formal concepts. We are given

Two sets E^{+},E^{−} of positive and negative (respectively) examples.

A set T of ontological terms with a partial order ≽ which encodes the “more general than" relation. For example, with t1=biological process and t2=developmental process, we have t1≽t2.

An annotation function M which maps each example to a subset of T, i.e. M:E^{+}∪E^{−}→2^{T}.
From M, we can derive a reverse mapping M^{′}:T→2^{E} producing the set of examples annotated with a given term, i.e. M^{′}(t)={e∈E:t⊆M(e)}. It is also useful to define the transitive closure S(t) of M^{′}(t) as the set of all examples annotated by t or any term less general than t, i.e.
If t is the only term in a rule, then S(t) is the set of all examples for which the rule predicts the positive class. S(t) is also called the cover of the rule. More generally, for a rule conjoining an arbitrary set R⊆T of terms, we define the cover function as
Finally, we define a generality relation ≽_{r} on rules. Let R1,R2⊆T, then R1≽_{r}R2 if and only if Θ(R1)⊇Θ(R2).
Example 1
Consider 3 hypothetical examples and 7 actual ontology terms as shown in Fig. 1. The term generality relation ≽ corresponds to the direction of edges from more to less general. Here we have M(e_{1})={t4},M(e_{2})={t5,t6},M(e_{3})={t2}. M^{′}(t) is shown above each t box. Finally, S(t)=M^{′}(t) for t∈{t4,t5,t6} but e.g. S(t1)=M^{′}(t1)∪M^{′}(t4)={e1}.
Proposed algorithm
The algorithm proposed in this work induces a hypothesis from data in the form of a set of rules. To induce a hypothesis consisting of more rules we apply a covering algorithm that has its origin in the AQ family of algorithms [29] and it is also used in CN2. The covering algorithm consists of two steps: (1) induce a single rule from the current set of examples, (2) exclude the examples that are covered by this single rule from the current set of examples; these two steps are iteratively applied starting with the set of all examples until all positive examples are covered or a certain number of induced rules is reached. This process is described in Algorithm 1 and that algorithm we refer to as sem1R. As an input, the following data are required: a set of positive E^{+} and negative E^{−} examples, a set of ontologies \(\mathcal {O}\), and a maximal size of the set of induced rules k. An output is a set of induced rules. An induceSingleRule function returns the best rule based on selected evaluation function. The function induceSingleRule is described in Algorithm 2, all evaluation functions can be found in the “Evaluation criteria” section.
Contrary to CN2, the sem1R algorithm has the relations over terms that are explicitly specified in provided ontologies. Intuitively, if this kind of knowledge were exploited then we would expect some benefits during the process of inducing rules because the structure of terms is known. In this case, the main benefit is speeding up the process of inducing rules and removing obvious redundancy between the terms in rules. This was the main motivation for the following reduction procedures.
Reduction procedures
In this section, we formulate two procedures that significantly reduce a rule space in comparison with the traditional rule learning methods such as CN2.
Redundant generalization
This reduction method eliminates such terms occurring in a rule which are more general than any other term of the rule. Such terms in the rule do not affect a set of examples covered by the rule and consequently do not change its impact. Evidently, the set of covered examples is only affected by the most stringent sets of examples according to the mapping S.
Theorem 1
Let R1 be a rule and suppose that term t1∈R1 and a term t2∈R1 where t1 is more general than t2. Then, the rule R1 covers an equal set of examples as a rule \(\overline {R1} = R1 \backslash \{t1\}\) that does not contain t1:
and the rule R1 is called a redundant generalization of \(\overline {R1}\).
Proof
For simplicity, we take into consideration only rules with cardinality 1. Given this, mapping S can be seen as a cover operator Θ because it only makes an intersection over all sets of examples according to S. Also, a rule of cardinality 1 will be denoted as a term because we do not want to distinguish the relations over the set of terms and the set of rules. In this case, the ≽ relation over terms is equivalent to ≽_{r} relation over rules. This simplification does not lose generality.
A term cannot be associated with a higher number of examples than its more general counterpart. Concurrently, examples associated with a more specific term make a subset of examples associated with a more general term, written as t1≽t2⇒S(t2)⊆S(t1) where t1,t2∈T. Now, let rule R1={t1,t2} consist of two terms such that t1≽t2 and rule \(\overline {R1} = \{t2\}\) consists of only term t2. Then R1 covers an equal set of examples as \(\overline {R1}\). This equality is proven below.
□
Example 2
Consider the ontology O and mappings M,M^{′},S from Example 1. Let rule R1={t0,t2}, term t0 is more general than t2 (t0≽t2) and this rule covers examples e1,e2,e3 because Θ(R1)=Θ({t0,t2})=S(t0)∩S(t2)={e1,e2,e3}. Now, consider a rule \(\overline {R1} = \{t2\}\) that also covers examples e1,e2,e3 since \(\Theta (\overline {R1}) = S(t2) = \{e1, e2, e3\}\) and as we can see, term t0 occurring in the rule R1 does not influence a set of covered examples. Given this, rule R1 covers the same set of examples as rule \(\overline {R1}\). For this reason, rule R1 is Redundant Generalization and rule \(\overline {R1}\) is not Redundant Generalization.
To achieve a nonRedundant Generalization rule, i.e. the rule where the relation ≽ does not exist between any terms in the rule, we have to apply Redundant Generalization procedure until the relation ≽ between terms in the rule has not been found. As we can see in Example 2, this reduction procedure decreases the cardinality (length) of the rules.
Redundant nonpotential
In the previous case, the Redundant Generalization method reduces a rule space as a result of its ability to decrease the cardinality of rules. Specifically, this reduction capability is applied to the refinement operator that gradually extends rules by adding new terms into them. Redundant Generalization method can generate fewer candidate rules because terms that are in a relation with another term are not appended to the refined rule.
Contrary to the previous method, the Redundant Nonpotential method does not utilize relations among terms to reduce a rule space but compares rules with each other and removes such rules that cannot reach a higher quality value than the current best rule has. The ability to recognize nonpotential rules can be used for a direct reduction of rules in a rule space and also for eliminating a number of candidate rules in a process of rules refining. Firstly, we define two types of evaluation function: Q evaluating a quality of rule based on the number of covered/uncovered examples, and Q_{p} that evaluates a potentially maximum quality of rule that could possibly be achieved over its future refinements. Examples of Q functions are depicted in Eqs. 11, 13, and 15. Corresponding Q_{p} functions are depicted in Eqs. 12, 14, and 17. For the moment, we can say that Q_{p} function expresses an upper boundary of a rule quality. This upper bound can be reached when we know that rule refinements can only reduce the set of examples the rule covers. Then, the best potential refinement does not lose any positive examples from the current cover while ceasing to cover all the current negative examples. A Redundant Nonpotential rule and all its more specific rules can be safely disregarded in the single rule induction process because there is a guarantee that these rules cannot exceed an upper boundary of the rule quality represented by Q_{p}.
To illustrate, consider an arbitrary rule R1 and its more specific rule R2 (R1≽_{r}R2) which was created by refinement operator application. R2 covers a subset of examples covered by R1 (Θ(R2)⊆Θ(R1)). Unfortunately, ACC or F1score are not monotone functions, meaning that it is not guaranteed that R2 must always have a higher ACC or F1score than R1. For this reason, R2 cannot be safely pruned from a rule space because it is not obvious whether other refinements of R2, which are more specific than R2, can potentially achieve a higher score than R1 even though R2 could have a worse score than R1. To prune the rule space safely, we maintain the upper bound of rule quality Q_{p}. Given this, if rule R2 (refinement of R1) has a lower Q_{p} value than R1’s value of Q then R2 is a Redundant Nonpotential and this rule, along with all its more specific extensions/refinements, can be safely pruned from a rule space.
Theorem 2
Let \(\mathcal {R} = <R, \succeq _{r}>\) be a quasiordered set representing a rule space, where R={R1,R2,R_{best}}. Binary relation ≽_{r} is defined on R1 and R2 as ≽_{r}={(R1,R2)} meaning that R2 is more specific than R1; relation of R_{best} is disregarded  may be arbitrary. If potential quality (Q_{p}) of the rule R1 is smaller than the quality Q of rule R_{best} then the rule R1 and all its potential more specific rules, i.e. R2, can be pruned from the set of rules R thus from the rule space \(\mathcal {R}\). Then the rules R1 and R2 are called Redundant Nonpotentials.
Proof
First of all, suppose that a target class is represented by positive examples. Secondly, suppose an evaluation function whose highest value is returned when all positive examples and none of the negative examples are covered. An example of this function can be ACC or F1score. Note, that ACC is given by equation TP+TN/(TP+TN+FP+FN) (see the “Evaluation criteria” section) and the reason, why we affect only TP and not TN, is simple. An example that is classified as TP has to be covered by a rule. On the other hand, an example classified as TN does not have to be covered by a rule. Since we focus on the target class, an arbitrary rule reaches a higher score if a new rule covers the same set of positive examples as a rule and does not cover any other negative example. □
Example 3
Consider the ontology O and mappings M,M^{′},S from Example 1, and two rules R1={t2} and R2={t3}. Further, we define a set of positive examples E^{+}={e1,e3} and a set of negative examples E^{−}={e2}. Firstly, we evaluate the quality of the rules according to ACC measure (see Eq. 11)
Now, we compute a potential quality score of R2 (see Eq. 12):
Evidently, the potential quality of R2 is smaller than the quality of R1 so we can exclude the rule R2 and all its more specific rules (e.g. {t5,t6}) from the rule space. Note that an example of how to compute evaluation measures can be found in the next section.
To achieve the most effective pruning of rule space, we store a value of the highest quality rule that has been discovered during the learning process in \(\mathbbm {R}_{BEST\_SCORE}\) variable, see Algorithm 2. If the potential quality (Q_{p}(R)) of currently examined rule R is less than the \(\mathbbm {R}_{BEST\_SCORE}\), then the rule R and all its more specifics rules are Redundant Nonpotential and can be excluded from a rule space.
Evaluation criteria
It is necessary to know the quality of each rule because the rule with the highest value is needed for the final hypothesis. In this case, we define three evaluation functions: accuracy (ACC), F1score (F1), area under the ROC curve (AUC), and their adjusted versions for evaluating the potentially best results that the current rule can achieve after refinements in future evaluations. Accuracy works well for balanced problems (the number of positive examples is similar to the number of negative ones) and both classes are equally important. F1 and AUC help when dealing with imbalanced classes, F1 puts more emphasis on the positive class.
First of all, we define four elements of confusion matrix: number of true positives (TP), number of false positives (FP), number of false negatives (FN), and number of true negatives (TN) examples that are covered by an arbitrary rule R, see Fig. 2.
TP is given as a cardinality of the intersection of two sets, a set of examples that are covered by the rule R and a set of positive examples E^{+}. FP is given as a cardinality of the intersection of two sets, a set of examples that are covered by the rule R and a set of negative examples E^{−}. TN is given as a cardinality of the subtraction of two set, a set of negative examples E^{−} and a set of examples that are covered by the rule R. Finally, FN is given as a cardinality of subtraction of two sets, a set of positive examples E^{+} and a set of examples that are covered by the rule R. All equations are shown below.
Corresponding accuracy (ACC) of an arbitrary rule R can be computed by the widely known equation below:
However, the potentially highest accuracy of rule refined from R is computed differently. In Eq. 11, we see that the eventual accuracy is given by the numerator (TP and TN) whereas the denominator has the normalization function. The refinement may improve the rule quality in such a way that the examples that are classified as FP will be reclassified to TN, i.e. the numerator of \(Q_{p\_ACC}\) may at best be given by the sum of TN, TP, and FP. The equation for the potentially highest quality reached through refinement follows:
The computation of \(Q_{p\_ACC}\) in Eq. 12 assumes that the rule R aims to cover positive examples rather than negative ones. In other words, examples that are covered by the rule R are classified as positive. Secondly, we propose another evaluation measure that is based on F1score that implicitly does not take into account the number of TNs. Its common form is depicted in Eq. 13.
The corresponding version of potentially best accurate rule created by applying refinement operator to rule R that is based on the F1 measure takes the following form:
where all negative examples covered by rule R (FP) are excluded from the denominator in comparison with Eq. 13. Since there is still the possibility of finding such a rule which covers all examples determined as TP and none of the FPs.
Example 4
Consider the ontology O and mappings M,M^{′},S from Example 1, and a set of positive (E^{+}) and negative (E^{−}) examples from Example 3. Further, we define a rule R={t2}. First of all, we find examples that are covered by the rule using Θ operator, i.e. Θ({t2})=S(t2)={e1,e2,e3}. Secondly, we compute TP, FP, FN and TN:
Finally, we substitute these numbers in Eqs. 11 and 12:
The final ACC of rule R over the set of positive and negative examples is \(\frac {2}{3}\) and the potential best ACC for the set rule and the set of examples is \(\frac {1}{3}\).
Finally, let us give the rule quality in terms of AUC. The area under the curve can be computed easily. Since only the single rule is taken into consideration, its quality is determined by a single point in the ROC plot and it can be computed as a sum of areas of two triangles and one rectangle using an Eq. 15.
TPR (true positive rate) and FPR (false positive rate) are calculated as follows:
The adjusted version of AUC computing a potentially best AUC that a rule can achieve is shown in Eq. 17. In contrast to Eq. 15, \(Q_{p\_AUC}\) supposes that FPR goes to zero.
Feature construction
In the Problem definition section, we defined the rule space \(\mathcal {R}\) as a quasiordered set that is expressed as a pair of a set of rules and the relation ≽_{r} between rules. In addition, the form of rules is determined by propositional logic; more precisely, the rule is restricted to a conjunction of positive terms, i.e.
The first step in the rule learning process is feature construction because rule learning employs features as their basic building blocks. In this work, features are constructed trivially from a set of terms T which comes from the ontology O where each ontology term corresponds to one feature.
Feature selection
Oftentimes, a constructed feature set is extremely large and also redundant since it contains many features that are not associated with any example. For this reason, a feature selection method is highly recommended. Given this, we propose three various feature selection methods.
FS_atLeastOne
The first feature selection method excludes such terms from a constructed feature set which are not associated with at least one example from a set E^{+}∪E^{−}. In other words, this feature selection method removes such terms that are highly specific or do not cover any example. This method guarantees that removed terms cannot positively affect the final evaluation score of a rule because these terms cover an empty set of examples. For this reason, if such terms appeared in a rule then the rule would cover an empty set of examples.
FS_onlySig
The second feature selection method preserves only features whose terms are significant. Pvalues are calculated using a Likelihood Ratio Statistic (LRS) as is presented in [20]. The LRS for the twoclass problem measures differences between two distributions: the positive and negative class probability distribution within the set of covered examples and the distribution over the whole example set. It is computed as follows:
This measure is distributed approximately as χ^{2} distribution with 1 degree of freedom for two classes. If the LRS is above the specific significance threshold then the term is considered to be significant.
FS_sigAtLeastOne
The third feature selection method combines the two previous feature selection methods. A term that belongs to the feature set has to satisfy two conditions: 1) that term covers at least one example, and 2) the term is significant which is calculated by the LRS or the term is a generalization of some significant term. This method combines requirements from the previous two selection methods, its selectivity will be experimentally verified later.
Rule construction
Rule construction is the second step which aims to find a rule that optimizes a given quality criterion in the search space of rules.
The description of the algorithm for single rule learning is depicted in Algorithm 2 where input is a set of positive examples E^{+}, a set of negative examples E^{−}, a set of ontologies \(\mathcal {O}\), a function buildMapping that creates a link between the ontology and the set of examples E (E=E^{+}∪E^{−}), and a parameter k that represents the maximal length of induced rules. Note that this function is defined manually by a user. The first step in Algorithm 2 is to find all features. This operation is represented by the function featureConstruction at line 4 that assigns all terms from the set of ontologies \(\mathcal {O}\) to a set of features \(\mathbbm {F}\). To remove irrelevant features from the set of features \(\mathbbm {F}\), we propose a function featureSelection at line 5. Here, three various feature selection methods are provided as we mentioned in the “Feature selection” section, i.e. FS_atLeastOne, FS_onlySig, and FS_sigAtLeastOne.
The main part of this algorithm is presented in lines 824. In this while loop, candidate rules are gradually refined until the maximal length of the rule is reached (l variable represents the current length of rule) or there is nothing to refine, i.e. the algorithm did not create any new rule in the previous iteration. In the for loop (lines 1121), new candidate rules are generated using the application of the refinement operator on the corresponding parental rules. The algorithm iterates over each rule that is presented in the set of rules \(\mathbbm {R}\). To this rule, we apply a new ontologybased refinement operator which is represented at line 12 by the function refineRule that uses the Redundant Generalization and Redundant Nonpotential reduction procedures. Similar to the traditional CN2 refinement operator, the ontologybased refinement operator appends a feature to the refined rule. For example, in the case of a conjuction of terms R={t1,t2,t3}, a new rule is created as the union of term t4 and terms in rule R, i.e. R_new={t1,t2,t3}∪{t4}. A new refinement operator requires the following inputs: rule r to refine, a set of features \(\mathbbm {F}\), an ontology \(\mathcal {O}\) for information about relationships, a score of the best rule \(\mathbbm {R}_{BEST\_SCORE}\) that has been discovered, a set of positive and negative examples E, and a mapping M^{′} that represents a connection between ontologies and examples. The operator returns a set of all refined rules that are not Redundant Generalizations nor Redundant Nonpotentials and assigns them to newCandidates set.
The refineRule function that is described in Algorithm 3 starts with an empty set \(\mathbbm {S}\) where a content of this set will be returned at the end of the function at line 10. The cycle from lines 3 to 6 appends every feature to the rule that should be refined. Up to this part, the algorithm is similar to the traditional refinement operator. However, all rules that are not Redundant Generalization are excluded from the set \(\mathbbm {S}\) using the ontology \(\mathcal {O}\) that provides relationships among terms. This is done by calling a function removeRedundGeneralizations at line 8. The function removeRedundNonPotentials removes such rules that satisfy the definition of Redundant Nonpotential rules. In this case, the function continuously checks the following: 1) \(R \succeq _{r} \forall s \in \mathbbm {S} \cup R\). This is true since each element s represents a rule that is created as a refinement of rule R. 2) For each s, if its potential quality Q_{p}(s) is less than the quality \(Q(\mathbbm {R}_{BEST})\) then remove s and all its more specific rules from the set \(\mathbbm {S}\). In other words, all rules in \(\mathbbm {S}\) whose potential quality can be greater than the rule with the greatest quality \(\mathbbm {R}_{BEST}\) are preserved.
All candidate rules that were generated in refineRule function are assigned to the set of new rules \(\mathbbm {R}_{new}\). In addition, all newCandidates are evaluated by the function evaluateCandidate and its corresponding quality score is compared to the rule with the highest quality stored in a \(\mathbbm {R}_{BEST\_SCORE}\). If such a compared rule has a better quality then this rule is assigned to the \(\mathbbm {R}_{BEST}\) variable and the score is stored in the \(\mathbbm {R}_{BEST\_SCORE}\) variable. Simultaneously, the rule has to be significant. To compute this significance, we use LRS as we did in feature selection.
At the end of the algorithm, the best rule of the all rules that have been discovered is returned. If the function filterRules at line 22 is omitted then the Algorithm 2 is called a bruteforce exhaustive search that explores the whole search space and leads to a combinatorial explosion. For this reason, an appropriate heuristics should be provided for reducing the search space. In this work, we use Beam search that expands only the most promising rules based on the evaluation function. Other rules are disregarded.
Results and discussion
In this section, we propose an evaluation procedure that experimentally confirms the efficiency of the new ontologybased refinement operator using two reduction procedures: the Redundant Generalization and the Redundant Nonpotential. The algorithm with the ontologybased operator is called sem1R and it is compared against the traditional refinement operator used in CN2, which does not exploit any external knowledge during the rule refining process. Here, it is called exhaustive refinement. The ability to reduce a search space is tested on three different datasets with three feature selection methods (FS_atLeastOne, FS_onlySig, and FS_sigAtLeastOne) and with three different evaluation functions (ACC, AUC, and F1score). Observed parameters as a total number of explored rules, which must be refined to find the best rule, and also run times, were measured for the sem1R and exhaustive refinement. All presented algorithms are implemented in C++ and work with the Open Biological and Biomedical Ontology (OBO) format. Note that the algorithms require at least one ontology.
Because the proposed algorithm requires three inputs, we define their format as it is used in our R package. The datasets are represented as a twodimensional binary matrix D with i rows, j columns, a set of row ontologies R, and a set of column ontologies C. The mapping M^{′} is constructed such that each row and column is associated with a subset of ontology terms. This construction step has to be done manually by a user based on expert knowledge. In practice, it is necessary to have specific identifiers for rows and columns and these identifiers are associated with corresponding ontology terms. In gene expression analysis, such an identifier can be gene ID (e.g. FBgn for Drosophila melanogaster, ENSB for human or mouse musculus) for rows and sample ID (e.g. FBbt for anatomy compartments of Drosophila melanogaster or Experimental Factor Ontology for experiment metadata) for columns.
To transform a dataset from a twodimensional binary matrix to the set of positive and negative examples, we design the following procedure. First of all, we suppose that each element of the matrix D represents one example. Then all matrix elements containing 1s are assigned to the set of positive examples E^{+} and elements with 0s are assigned to the set of negative examples E^{−}. For a nonbinary matrix D, binarization is necessary.
The first tested dataset comes from [30] and describes the gene expression of imaginal discs of Drosophila melanogaster (DISC) where rows of the dataset correspond to genes and columns correspond to samples. Note that this format is used for all tested datasets. Rows (genes) of DISC dataset are described by Gene ontology [6, 7] and KEGG BRITE database. Columns (samples) are described by Drosophila anatomy ontology (DAO) [31]. The second dataset called Dresden Ovary Table (DOT) [32, 33] describes gene expression and RNA localization in fly ovaries using Gene ontology, KEGG BRITE database, and an ontology provided by the authors is freely available at [33], respectively. Note that DOT and DISC are originally formed as a binary matrix. Last but not least, the third dataset was downloaded via Expression Atlas [34] where it is called Strandspecific RNAseq of nine mouse tissues[35] (m2801) and using Gene ontology and Experimental Factor Ontology (EFO) [36]. For binarization, we set up cutoff to 0.5 TPM (Transcripts Per Kilobase Million) because it is presented as a default value in Expression Atlas and it maintains comparable numbers of positive and negative examples. If a value in the matrix is higher than 0.5 TPM then the value is set to 1 and the element is assigned as a positive example otherwise the value is 0 and the element goes to the set of negative examples E^{−}.
Also, it may be desirable to find descriptive rules only for predefined rows (genes) or columns (samples) that are relevant to specific research. Specifically, it can be significantly expressed genes in a treatment group against the control group. In this case, the matrix D has only i_{s} rows corresponding to significantly expressed genes and j_{t} columns corresponding to samples belonging to the treatment group and j_{c} columns belong the control group. Here, each of the elements belonging to the treatment group is set up to 1 and is considered to be positive, others are 0 which means negatives. The total number of examples is i_{s}×j_{t} and i_{s}×j_{c} for positive and negative examples, respectively.
Basic statistics of tested datasets, as a number of rows and columns, a number of positive and negative examples, and a number of ontology terms for given ontologies, are depicted in Table 1. Because there are some terms that do not associate with any example and such terms are not good candidates to be a feature since they do not cover any example, the final feature sets can be given by one of the three feature selection methods mentioned in the “Feature selection” section. The numbers of features that were used for each rule induction step are shown in Fig 3.
These experiments clearly confirm our presumptions, defined in the “Feature selection” section, where we assumed that the most reducing feature selection method is FS_onlySig. On the other hand, the most benevolent or conservative method is FS_atLeastOne, which guarantees that any of the relevant features possibly positively affecting the quality score of the hypothesis will not be discarded from the feature set. The FS_sigAtLeastOne demonstrates a similar behavior to FS_atLeastOne. Concretely, the FS_sigAtLeastOne method produces a smaller feature set than FS_atLeastOne. However, the differences are not huge.
To avoid a combinatorial explosion problem in exploring the rule space, we use a Beam search which is represented by filterRules function in Algorithm 2. The width of the beam was set no higher than the 100 best rules, the rules are sorted according to their quality score calculated with one of the given evaluation functions. We decided to use this threshold, because greater beam widths result in huge run times in exhaustive refinement. Higher beam widths also increase memory requirements. At the same time, the ability of sem1R to reduce the search space and consequently reduce run time is obvious even below the beam width of 100. Theoretically, it is anticipated that the ability to reduce a search space grows with the beam width since there are potentially more rules to prune especially for Redundant Nonpotential procedure.
Total run time and total number of explored rules were observed for rules with the maximum length of 10 because longer rules can be more difficult to interpret in real problems, especially in a biology domain. The total number of induced rules for each dataset was set to 10, for the same reason as previously mentioned. The final results of experiments as total run time in seconds and total number of explored rules are depicted in Table 2 for sem1R and in Table 3 for exhaustive refinement.

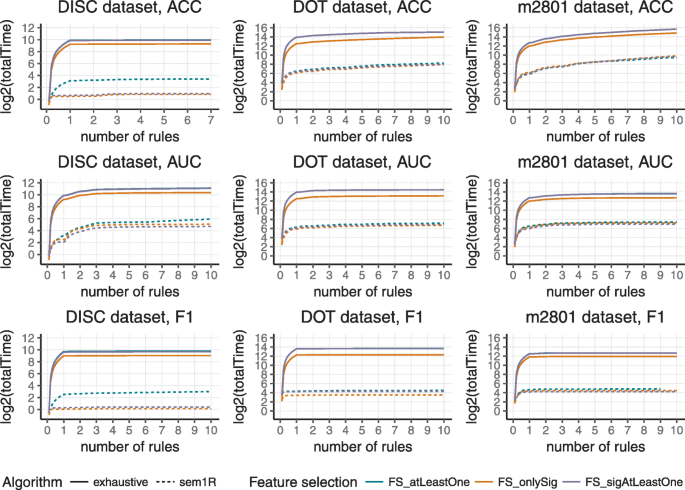

A graphical representation is shown in Figs. 4 and 5. The first one shows run times in logarithmic scale depending on the number of induced rules for sem1R (dashed line) and exhaustive refinement (full line). Run time was measured for three datasets with three different evaluation functions and with three different feature selection methods. Evidently, in all cases, the run time of sem1R is significantly lower. Figure 5 shows the total number of rules that have been evaluated in a logarithmic scale that depends on the number of rules. As in the previous figure, the number of rules was measured for three datasets with three different evaluation functions and with three different feature selection methods. But even in this case, sem1R with its Redundant Generalization and Redundant Nonpotential procedures prunes the rule space more rapidly in comparison with the traditional exhaustive refinement. Note that using FS_onlySig method, the smallest number of rules is evaluated. This corresponds to the results in Fig. 3.
In all various experimental settings, both exhaustive refinement and sem1R induce rules with the same quality score across corresponding experiments. The level of significance was set to 99% for feature selection method FS_onlySig and FS_sigAtLeastOne and also the same significance level for finding the best rule in induceSingleRule function. From Figs. 4 and 5 it is obvious that F1score prunes the search space most and the run of the algorithm is fastest. One of the reasons is that only TP, FP, and FN must be calculated here. On the other hand, AUC is less strict in the pruning of the search space and it is also the slowest, because Eqs. 15, 16 and 17 have to be calculated for every candidate solution and the algorithm has to evaluate the highest number of candidate rules. There is a clear tradeoff between the efficiency and complexity of evaluation that stands behind AUC. All results of the experiments are appended to Additional file 1.
For illustration and better understanding, we present an example of 2terms long rule induced from the DISC dataset, where each term comes from a different ontology. The rule is following: GO:0002181 AND FBbt:00000015. This reported rule is enriched (it covers far more positive examples than expected by random). The FBbt identifier refers to a term from Drosophila anatomy ontology and the GO identifier refers to a term from Gene ontology. In this particular case, the rule says that all genes that are associated with a cytoplasmic translation process (the chemical reactions and pathways resulting in the formation of a protein in the cytoplasm) tend to be overrepresented in thorax segment of Drosophila melanogaster.
Conclusion
We proposed and implemented a new rule learning algorithm that induces a set of rules related to ontologies or taxonomies. Using two novel reduction procedures Redundant Generalization and Redundant Nonpotential, which are part of the proposed ontologybased refinement operator, we dramatically reduce the search space. Consequently, runtime of the algorithm is decreased rapidly as well. These procedures guarantee that any removed rule cannot positively affect the quality of the final hypothesis. Also, three various feature selection methods that help to increase the efficiency of the algorithm were proposed. The algorithm is implemented in C++ and it is available at http://github.com/fmalinka/sem1r as R package. We demonstrated our algorithm on three real gene expression datasets, however, it is generally applicable to any learning task that combines measurements and ontologies, including metabolomics, etc.
Availability of data and materials
The datasets generated during and/or analysed during the current study are available at the GitHub repository, [http://github.com/fmalinka/sem1r]
